Q1: What is the primary function of the 80190-560-02-R?

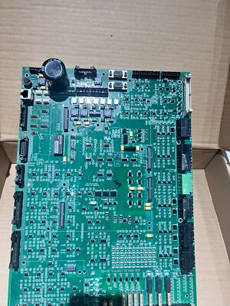

It is an Analog Control Board (ACB) for PowerFlex 7000 Medium Voltage AC Drives. Its primary function is to manage and process critical analog signals, facilitating communication between the low-voltage control logic and the drive's power section via fiber optic link conversion . It handles analog signal acquisition, PWM generation, and analog I/O processing .
Q2: Is this board compatible with 18-pulse drives?
No. This specific model is designed for "Non 18-Pulse" configurations, primarily for standard PWM drives within the PowerFlex 7000 family .
Q3: Can this board be hot-swapped while the drive is running?
Although the board is designed to be auto-detected by firmware revisions 4.x and later, it is highly recommended to de-energize the control power before replacement to avoid data corruption or electrical transients . Always ensure all power to the PowerFlex 7000 drive has been disconnected and capacitors are fully discharged before handling .
Q4: What does the conformal coating provide?
The conformal coating acts as a protective barrier against dust, salt spray, and humidity, which is essential for boards used in harsh environments like offshore platforms or chemical processing plants . It provides excellent resistance to moisture, dust, and corrosion, making the board suitable for demanding industrial environments .
Q5: What are the common symptoms of a failing analog control board?
Common indicators include "Feedback Loss" faults, erratic motor speed oscillations, inability to reach commanded setpoints, or analog I/O "Out of Range" errors on the drive's human-machine interface . Other symptoms may include loss of motor or DC bus voltage feedback due to communication errors between motor control and voltage feedback boards.
