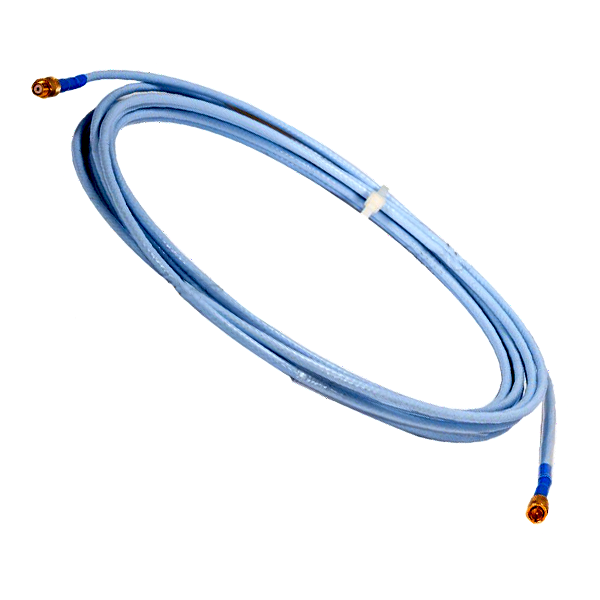

New Bently Nevada 330130-040-00-00 3300 XL 8mm Proximity Transducer 4.0-meter Extension Cable

Product Details

Part Number Breakdown (330130-040-00-00) :

• 330130 – Base: 3300 XL standard extension cable

• -040 – Length: 4.0 meters

• -00 – Cable option: Standard (non-armored, no connector protector)

• -00 – Agency approval: None required

Related Product Model Recommendations

Payment & Delivery

FAQs

Q1: What is the primary function of the 330130-040-00-00?

It connects the 3300 XL probe to its Proximitor sensor, transmitting the probe's signal for vibration and position monitoring on rotating machinery .

Q2: Which 3300 XL systems can this cable be used with?

It is compatible with 3300 XL 8mm proximity transducer systems, used with 8mm probes (330101/330103 series) and Proximitor sensors (330180 series) . It is not compatible with 11mm systems (330730 series).

Q3: What do the "-00-00" suffixes mean in the part number?

The first "-00" indicates standard cable (non-armored, no connector protector). The second "-00" indicates no agency approvals (general-purpose, not for hazardous areas) .

Q4: What is the maximum total cable length for the 3300 XL transducer system?

The total cable length (probe cable + extension cable) must match the Proximitor's rated system length . For example, a 1.0m probe + 4.0m extension requires a 5.0m Proximitor (330180-50-00). Mismatched components can cause measurement errors.

Q5: Can I replace a damaged 330130-040-00-00 with any coaxial cable?

No. The 3300 XL system uses a 75Ω triaxial cable with specific capacitance and impedance characteristics. Only a genuine Bently Nevada 330130 series extension cable will maintain the system's calibrated performance and API 670 compliance.
